| Brand Name : | Coolmay |
| Model Number : | QM3G-50FH |
| Certification : | CE |
| Price : | $93~$189 unit |
| Payment Terms : | T/T,Paypal, Western Union, Credit Card |
| Supply Ability : | 1500 pcs per week |
| Delivery Time : | within 3 working days after payment confirmed |

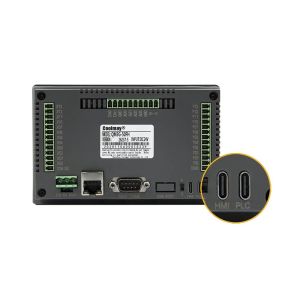

WIFI 60K Human Machine Interface PLC PID 4AI Self Tunning Temperature
PLC Controller Built-in 5 Inch HMI PLC All In One WIFI Function PID Self-Tunning Temperature controller
Packing List
Paramaters of HMI Part:
size of HMI: 5 inch
cutout size: 143*86mm
Resoution:800*480
RAM:NOR Flash 8MB
ROM:64MB
CPU:32bit CPU 408MHz
com ports:1*type C download port, 1*RS232
Software: mView
Paramters of PLC Part:
Digital I/O: Max 12DI/12DO
I/O level: default NPN input and output, MR can be customized PNP input PNP output, MT can be customized PNP input and NPN output
DO type: transistor(MT) or relay(MR) or mixed(MRT)
Analog I/O(optional): max 16AI/8AO
AI(Optional):
AO(Optional):
com port:1*mini USB,1*RS485,1*RS232
software: WORKS 2/ GX developer 8.86
We are committed to providing you with a variety of solutions (Communication Port, Analog, Temperature,Weighing, etc.)
Model | QM3G-70KFH |
Dimension | 226*163*35.6mm |
Cutout size | 217*154mm |
Power Consumption | 6-7W |
| HMI | |
Feature | 60K-color resistive touch screen, supports portrait display |
Type | 7.0"TFT |
Display size | 154*87mm |
Resolution (pixels) | 800*480 |
RAM | NOR Flash 16MB |
ROM | 64MB |
| CPU | 32bit CPU 408MHz |
Default | Type-B HMI download port (can download PLC program through the USB penetrating function), RS232 |
| Optional com port | 1 RS485 (changed from default RS232) |
| software | Coolmay mView HMI Programming Software |
| PLC | |
I/O | Max 30DI/30DO (max 28MR) |
I/O level | Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay
output: Normally open dry contact |
DO type | Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT) (Relay output: max load 5A/ transistor output: max load 500mA) |
High-speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
High-speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
Default programming port | 1 Mini USB, 1 RS232 |
Optional COM port | 1 Rs485 or 2 Rs485 COM ports (one is changed from the default Rs232 port) |
CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232
port) | |
Analog I/O (optional) | Max 16AI/8AO |
AI type (optional) | Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/
NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed |
AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/ -5~5V/ -10~10V (2AO for 1 minus voltage) |
Software | Compatible with Mitsubishi GX Developer 8.86 and WORKS 2 |
Real Application
FAQ:
1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial
products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you
one-stop products and service.
2) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your
Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the
delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western
Union ect.
|
|
