Auto Tuning 32K PLC Touch Screen Interface CAN WIFI Network Port

5 Inch Integrated Touch Panel PLC PID Auto-Tuning 32K Program Capacity optional RS485 / CAN / WIFI / network port

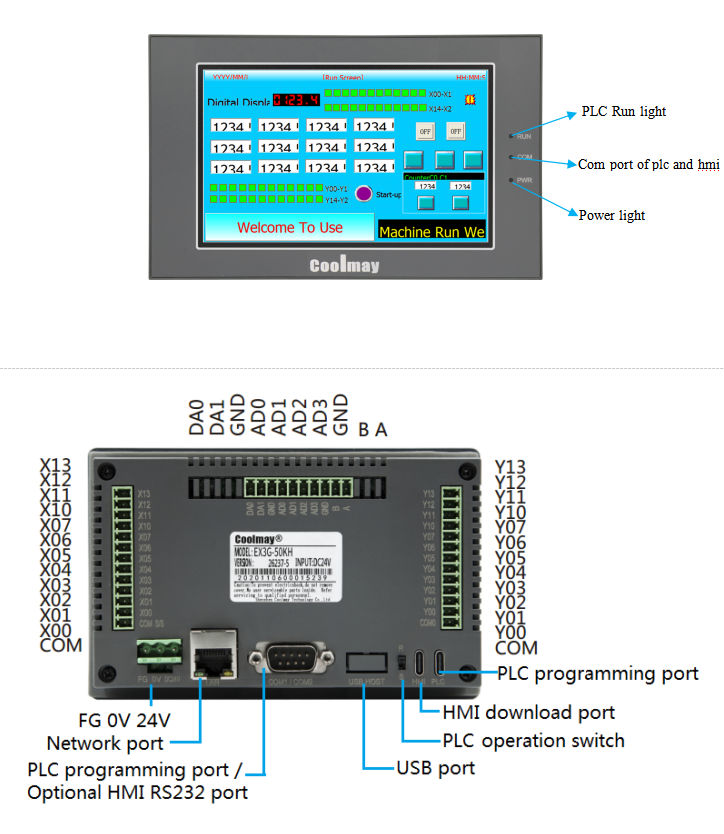

Coolmay HMI/PLC all-in-one machine has innovatively realized the high integration of HMI and PLC switch, analog and temperature in hardware. It can be used in various occasions requiring PLC control without external PLC and other expansion modules. The highly integrated industrial automation control solution uses pluggable terminals, which greatly facilitates the disassembly, installation and maintenance of terminal customers. It can be replaced directly when it fails, achieving "zero travel expenses" and free on-site maintenance.

PLC Programming notice

The PLC is compatible with GX 8.86/ GX Works 2 and below. If you use other versions of the software, incompatibility may occur.

When the PLC program is downloaded, there is a prompt error: Cannot specify the com port,

GX 8.86 software: Online - Transfer settings change com port;

Works 2: All targets - Change the com port in all connected targets;

If communication error occurs, cable is abnormal If prompted, remove it by powering off, detecting the cable, detecting whether the power is normal, or replacing the computer.

Parameter

Feature:

1. Structure
Highly integrated, compact structure, cost saving and space saving.

2. Programming Software
HMI: Adopts CoolMayHMI touch screen programming software.

PLC: Compatible with Mitsubishi Works 2/ GX Developer 8.86.

3. Input
Digital input: 12 channels digital input.
Analog input: 4 AD inputs can be installed.
Optional: E/K/S/T/J thermocouple/PT100/PT1000/NTC10K/NTC50K/NTC100K/ 0~10V/0~5V/0~20mA/4~20mA or mixed type and other special specifications (thermocouple supports negative temperature).

4. High-speed counting input
Single phase 6 channels 60KHz high-speed counting or 2 channels AB (Z) phase 60KHz plus 1 channel AB phase 10KHz.

5. Output
Digital output: 12 channels digital outputs (Y0~Y3 are MOS tubes).

Option: Relay(MR) or MOS(MT); Relay output: max load 5A, MOS output: max load 2A.

Analog quantity: 2 DA outputs can be installed. Option:0~10V /0~5V/ 0~20mA/ 4~20mA or mixed.

6. High-speed pulse output
Support 8-channel pulse output. Y0-Y3 is 100KHz, Y4-Y7 is 10KHz; high-speed counting plus high-speed pulse total transmission cannot exceed 480KHz.

7. Communication
Support RS232 communication, and optional RS485/CAN/WIFI/network port (support Mitsubishi programming port protocol/MODBUS protocol/RS protocol/BD board protocol).

8. Program encryption
Support PLC special encryption, completely prohibit reading programs, and protect users’ intellectual property rights.
