High Speed Counting Integrated HMI PLC Programming 6 Channel 60KHz
Integrated HMI PLC 32bit CPU 408MHz Programmable Logic Controller 60K-Color ResistiveTouch Screen

The all-in-one solution is to integrate the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication port into a compact unit to meet the needs of customer equipment automation control.

Parameter:

Advantage:
Post-retail cost
- Based on an all-in-one design, all control elements are integrated into one unit,and the product uses pluggable terminals.
-Users only need to replace the all-in-one machine to solve the problem, simpleand convenient.
-All maintenance can be carried out remotely, without the need for professionaltechnicians to come to service, thereby savingtravel expenses.

Post-retail labor cost
-All maintenance problems of the device can be completed by the user without the need of standing professional after-sales personnel.

Zero development cost
-Coolmay research and development does not require software development, only hardware design, no manpower and material costs.

Zero development time
-Normal project development must start from the first code, but Coolmay only needs to adjust the hardware slighty.Under normal circumstances, it can be completed within a week.
-All products have been tested by the market for more than ten years, and their reliability has been recognized by customers.
-General development requires multiple experiments to succeed. But Coolmay is based on 15 years of technology precipitation, and usually the development project can be completed once.

Features:
Positioning control——high-speed pulse
Transistor output CPU: conventional 8-axis, YO-Y3 is 100KHz,Y4-Y7 is 10KHz.Support positioning, can quickly complete the positioning function, up to 8 axes.Each axis control is realized by instructions,PLC program is highly readable andeasy to maintain.
High-speed counting input
Real-time high-precision monitoring: 6 channels of 60 KHz, which can be directly connected to the encoder to count the input of the encoder.Up to 6 external input interrupts.

Interface and indicator:
POWER: power indicator, the light is on when the power is connected.
RUN: PLC running status indicator, the light is on when the PLC is running.
COM: HMI and PLC communication status indicator, the light is on when the two communicate.
Power terminal: the positive and negative poles of the DC24V switching power supply are connected to the DC24V and 0V of the power terminal respectively.
PLC programming port: two PLC programming ports (Mini type B USB programming port or Type-C/RS232), PLC program can be downloaded through 232 programming cable or USB cable.
HMI programming port: download the touch screen configuration program.
USB interface: mainly can be directly inserted into a U disk with a FAT 32 file system, or a mouse (under development)

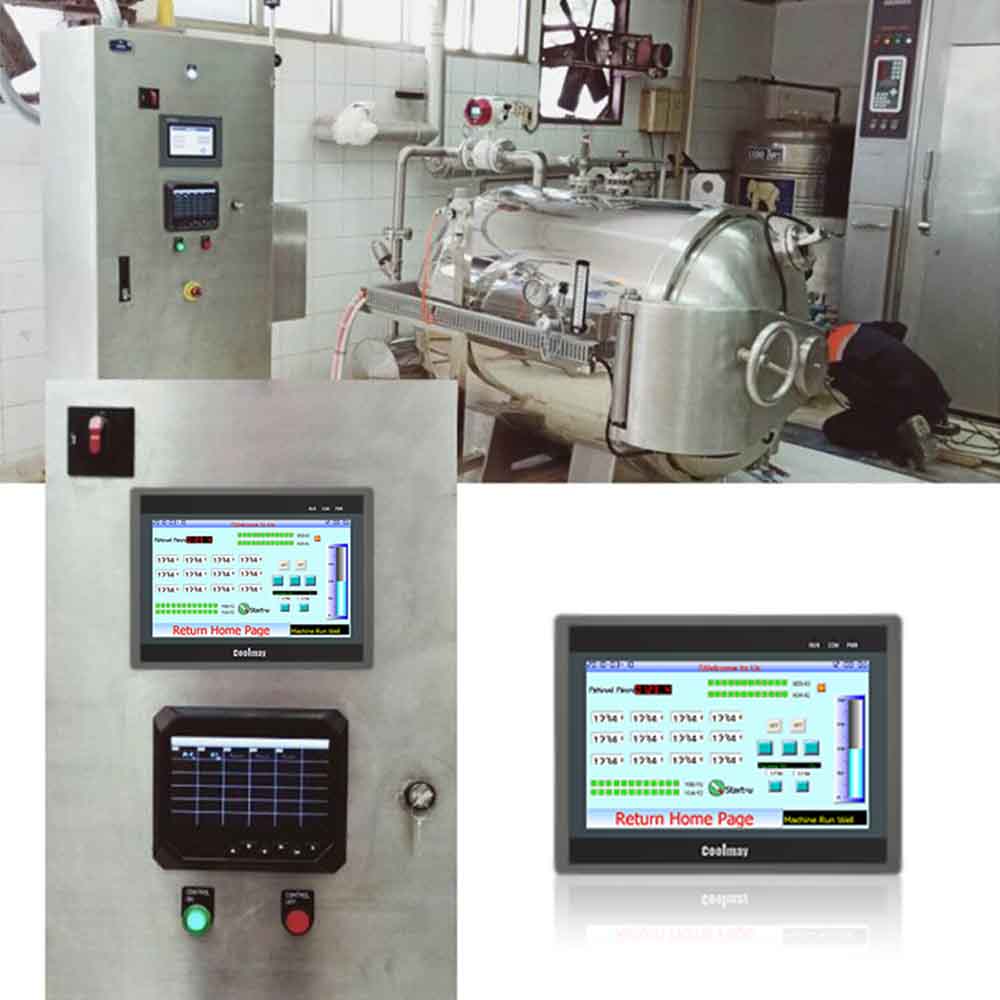

Application scenario:

Food packaging machinery, electronic manufacturing equipment, printing machinery, textle machinery, medical machinery testing machinery, wind powerequipment,engineering machinery, plastic machinery tobacco machinery, agriculture, forestry and animal husbandry (aquaculture), environmental protec-tion equipment, automobile manufacturing,AGV trolleys,logistics storage equipment...
