| Brand Name : | Coolmay |
| Model Number : | CX3G-16M |
| Certification : | CE Certificate |
| Price : | Details Need To Be Negotiated |
| Payment Terms : | TT,Paypal, Western Union, Credit Card |
| Supply Ability : | 15000 Units Per Week |
| Delivery Time : | 3-5 Days After Payment Confirmed |

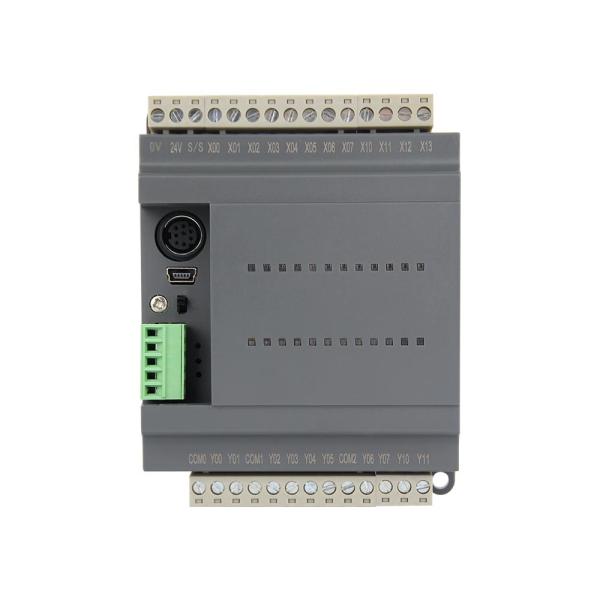

8DI 8DO DC 24V Coolmay PLC Module Single Phase 6 Channels 60KHz
Cost Save Free Software Industrial Control PLC 8 Input 8 Output Relay Output DC 24V Power
Package
Features
Specification
| Model | CX3G-16M |
Dimension | 85*90*36mm |
Cutout size | 77*99mm |
Installation | Fixed hole installation and DIN-Rail (35mm ) |
I/O level | Input: Passive NPN, public terminal isolated Transistor output: NPN Relay output: Normally open dry contact |
Digital I/O | 8DI/8DO |
DO type | Relay(MR) or transistor(MT) or mixed(MRT) (Relay output: max load 5A/ transistor output: max load 500mA) |
High speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ
60KHz + 1 AB phase 10 KHz |
High speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz High-speed counting + high-speed pulse < 480KHz |
Analog I/O (optional) | None |
Default | 1 Mini type B USB programming port, 1 RS232 programming port
(Interface terminal is mouse female port with 8 holes), 2 RS485 COM
ports |
Optional | Default 2 RS485 COM ports can be customized as 1 RS485, 1 RS232 COM ports, or 1 RS485 COM port, 1 CAN (2.0A/B), or 1 RS232 COM port, 1 CAN (2.0A/B) CX3G-48M can add Ethernet port. |
Software | Compatible with WORKS 2 |
Wring
RFQ:
1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial
products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you
one-stop products and service.
2) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your
Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the
delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western
Union ect.
