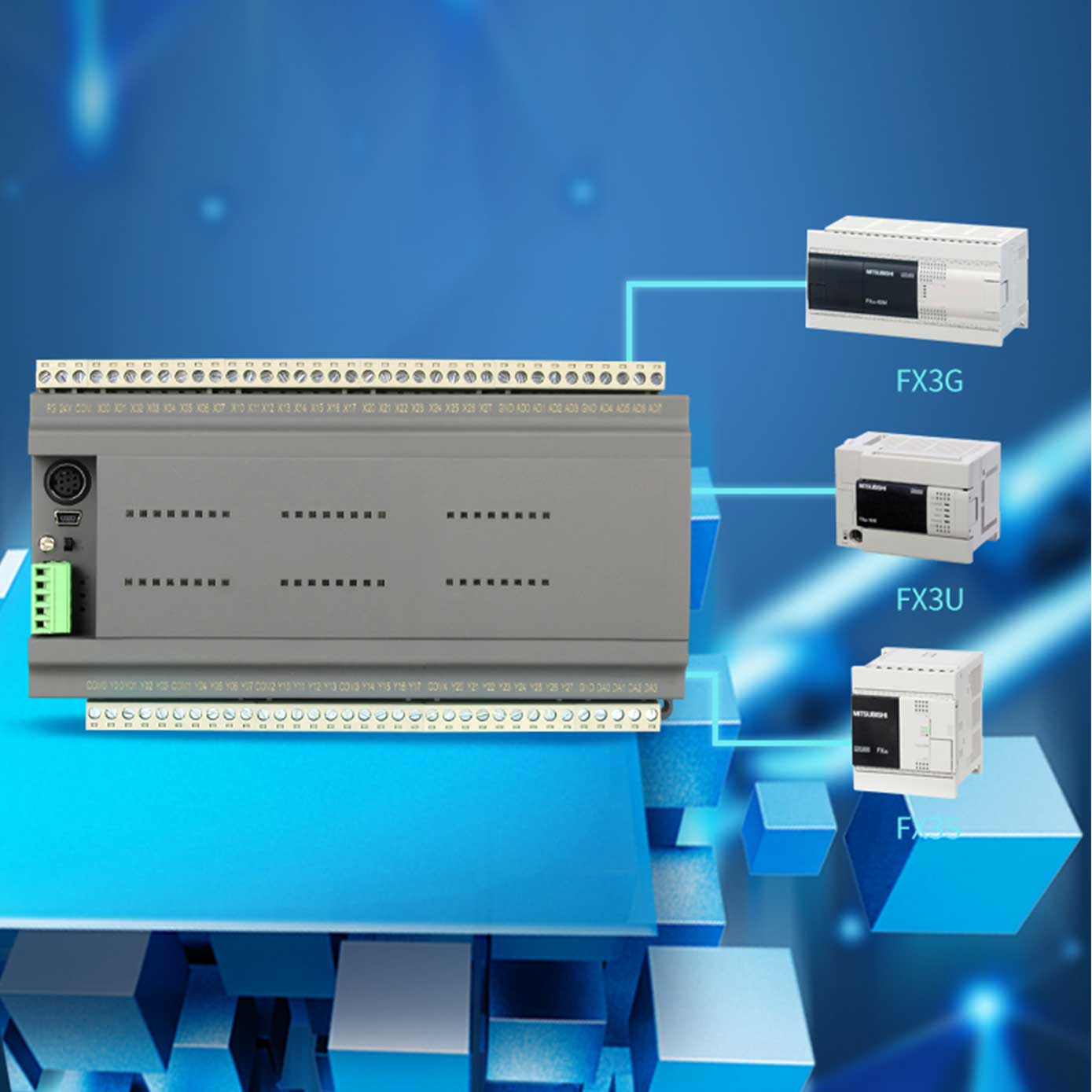

32K 100KHz Programmable Logical Controller Public Terminal Isolated
Modular PLC
32K Program Capacity Industrial Control PLC Support Interrupt
Passive NPN, Public Terminal Isolated
Coolmay PLC programmable controller adopts power separation
technology for the first time in hardware innovation. It is
ultra-thin, low heat, fast heat dissipation, stable and reliable,
PLC is highly integrated with analog and temperature, powerful,
easy to use, cost and space saving, and flexible. It has strong
performance and can be used in various occasions requiring PLC
control without external PLC expansion modules.
Parameter:
| Dimension | 200*90*36mm |
| Cutout size | 192*99mm |
| Installation | Fixed hole installation and DIN-Rail (35mm ) |
| Features | Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register |
| I/O level | Input: Passive NPN, public terminal isolated |
| Digital I/O | 24DI/24DO |
| DO type and load | Transistor MT: 0.5A/point, 0.8A/4 point COM, 1.6A/8 point COM; |
| High speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
| High speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz |
| High-speed counting + high-speed pulse < 480KHz | |
Analog I/O | 8AI/4AO |
AI type | Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple / PT100/ PT1000/ NTC10K/
NTC50K/ NTC100K/ |
AO type | 0~10V/ 0-~5V/ 0~20mA/ 4~20mA |
| Default | 1 Mini type B USB programming port, 1 RS232 programming port (Interface terminal is mouse female port with 8 holes), 2 RS485 COM ports |
| Optional | Default 2 RS485 COM ports can be customized as |
| Software | Compatible with GX WORKS 2 |
Features:
1. Structure: Highly integrated, compact structure, cost saving and space
saving.
2. Programming software: Compatible with GX WORKS 2.
3. Input:
Switching quantity: 24 digital inputs (passive NPN, public terminal
isolation).
Analog quantity: 8 AD inputs.
Optional: EKSTJ type thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/
NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4-20mA/ -5V~5V/ -10V~10V or mixed
type and other special specifications (thermocouple supports
negative temperature).
4. High-speed count input: 6-channel single-phase 60KHz high-speed counting or 2-channel
AB(Z) phase 60KHz+1 channel AB phase 10KHz.
5. Output:
Switching quantity: 24-channel transistor output (maximum load
500mA) or relay output (max load 5A) or mixed.
Analog quantity: 4 DA outputs can be selected.
Optional: 0-10V/0-5V/0-20mA/4-20mA/-5V~5V/ -10V~10V or mixed type
(2DA for 1 mins voltage).
6. High speed pulse: Support 8-channel pulse output (Y0-Y3 is 100KHz, Y4-Y7 is 10KHz;
high-speed counting + high-speed pulse total can not exceed
480KHz).
7. Communication: Support RS485 communication, RS232 port and CAN 2.0A/B (optional programming port protocol/MODBUS protocol/RS protocol/BD board
protocol).
8. Program encryption: Support PLC special encryption, completely prohibit reading the
program, protect the intellectual rights and interests of engineers
and manufacturers.
9. Signal filtering: Support input signal filtering time setting, filtering time
default 10ms (settable range 6-60ms).
|
|
