10.1'' TFT 24DI 20DO HMI PLC All In One 32K Retentive Register
HMI PLC All In One 24DI/20DO 32K Program Capacity Supportlinear Arc Interpolation And PID Auto-Tuning

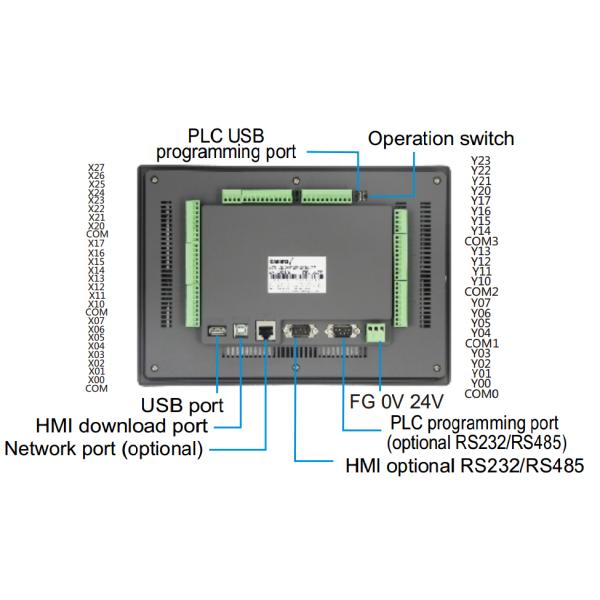

Introduction of each interface and indicator
POWER: Power indicator, connected to the power light
RUN: PLC running status indicator. This light is on when the PLC is running.
COM: touch screen and PLC communication status indicator, when the two communicate, the light is on
Power terminal: The positive and negative terminals of the DC24V switching power supply are respectively connected to the DC24V and 0V of the power supply terminal.
PLC programming port: two PLC programming ports (MiniB type usb port / RS232), PLC program can be downloaded through 232 programming line or USB cable download
Touch screen programming port: download touch screen configuration program
USB interface: mainly can be directly inserted into the U disk of the file system FAT 32, can also be inserted into the mouse.
Specification:
| Display | Dimension | 275*194*36mm |
| Resolution | 1024*600 pixels | |
| Type | 10.1” TFT | |
| Features | Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register | |
| Memory | RAM | 128MB |
| ROM | 128MB | |
| CPU | CORTEX A8 720MHz-1GHz | |
| I/O | DI/DO | 24DI/20DO |
Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact | ||
| DO type and load | Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT) MOS tube: 2A/point, 4A/4 points COM; MT: 0.5A/point, 0.8A/4 points COM, 1.6A/8 points COM; MR: 2A/point, 4A/4 points COM, 5A/12 points COM. | |
| Analog I/O (optional) | Max 16AI/8AO | |
| AI type (optional) | Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ -5V~5V/ -10V~10V/ 0~20mA/ 4~20mA/ mixed | |
| AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/ -5~5V/ -10~10V (2DA for 1 minus voltage) | |
| High-speed function | High-speed counting | 6 channels single-phase 60KHz, or 2 channels AB (Z) phase 60KHz + 1 channel AB phase 10KHz |
| High-speed pulse | 8 channels,Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz | |
| Connection | HMI | 1 HMI download port,1 USB 2.0 port |
1 RS485 or 1RS232 port Ethernet port (can not coexist with PLC Ethernet port) | ||
| PLC | 1 Mini type B USB port, 1 RS232 port (Program port,also can be used as COM port) | |
| 1 RS485 or 2 RS485 COM ports (one is changed from the default RS232 port), CAN (2.0A/B), Ethernet port (can not coexist with HMI Ethernet port), WIFI (will occupy the default RS232) | ||
| Software | HMI | CoolMayHMI HMI programming software |
| PLC | Compatible with Mitsubishi GX Developer8.86 and GX WORKS 2 |
Advantage:
◆ Upper computer programming software compatible with Works 2/GX Developer8.86 (supports Ladder diagram and SFC language, does not support structured programming/labels).
◆ Powerful, compatible with FX3G/FX3U/FX3S PLC, high processing speed.
◆ Military level 32 bit CPU adopted, which is faster and more adapted to industrial environment of high electromagnetic interference.
◆ Special encryption, prevent illegal reading thoroughly. 8-bit encryption, 12345678 as password can thoroughly prevent reading of ladder logic program.
◆ Clock supported, rechargeable battery adopted.
◆ Default With 1 HMI Downloading port, 2 PLC programming ports: one MiniB USB port with faster downloading speed; one Rs232 programming port with 8 mouse hole sockets, and 1 USB port.
◆ Support programming port protocol/Modbus protocol/Rs protocol/BD board protocol,
PLC communication with each other and other devices is easily achieved.
PLC Programming notice
The PLC is compatible with GX 8.86/Works 2 and below. If you use other versions of the software, incompatibility may occur.
When the PLC program is downloaded, there is a prompt error: Cannot specify the com port,
GX 8.86 software: Online - Transfer settings change com port;
Works 2: All targets - Change the com port in all connected targets;
If communication error occurs, cable is abnormal If prompted, remove it by powering off, detecting the cable, detecting whether the power is normal, or replacing the computer.
|
|
