12DI 12DO Industrial Control PLC Programming For Industrial Automation
Industrial Control PLC 24VDC Input Digital Programmable Controller 12DI 12DO 4AI 4AO Ethernet RS485 Monitor
Coolmay L02 series PLC is a high-function general-purpose controller specially designed for automation equipment. L02 series modules can be expanded up to 31 units. The L02 series host has a built-in communication network and communicates with the Ethernet/IP industrial network to realize high-speed data transmission.
Specifications
| Model | LO2M24T | |
| Programming language | Ladder diagram(LD) / lnstruction list / Sequential function chart(SFC) | |
| Program capacity | 32k steps | |
| Expansion model | Max limit of 31 units: max 12 analog input/output respectively | |
| Max l/O | FX3U mode: 512 points; FX3G mode: 256 points (the sum of input and output points) | |
| CPU Digital I/O | 12DI/ 12DO | |
| CPU analog I/O | 4AD/4DA | |
| 16-bit counter C | [CO~C15] 16points General | |
| 32-bit counter C | [C220~C234] 15points Retentive | |
| [C235~C245 Single phase single counting][C246~C250 single phase double counting] | ||
| [C251~C255 Two-phase double counting] | ||
| High-speed pulse | 4-axis 200KHz+4-axis 100KHz | |
| High-speed counter | 6 channels 60KHz | |
| Do type | Transistor output, load maximum 500mA, low level NPN, COM connected to negative | |
| Default COM | Type-C, RS-232, RS-485*2, Ethernet, CAN | |
| Protocol | Programming port Modbus RTU, Modbus TCP, Modbus UDP, freeport protocol, CAN, Ethernet/IP, BD board | |
| Rated input voltage | 24VDC(土10%) | |
| Software | Compatible with GX WORKS 2 | |

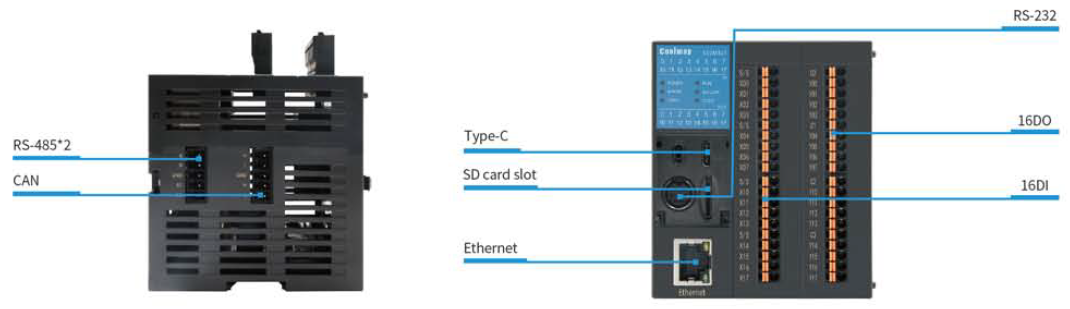

Integratred host design
L02 host motion controller has built-in multiple l/O and communication interfaces, which can meet the market demand for compactness, high performance and high value.
CPU performance
Easy installation
Open the white buckle, align the expansion interface and push the
module directly in, press the white buckle at both ends to complete
the installation.
|
|
