| Brand Name : | Coolmay |
| Model Number : | TK6050FH |
| Certification : | CE |
| Price : | usd50-usd78 per piece |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 5000pcs/month |
| Delivery Time : | 5-7 working days |

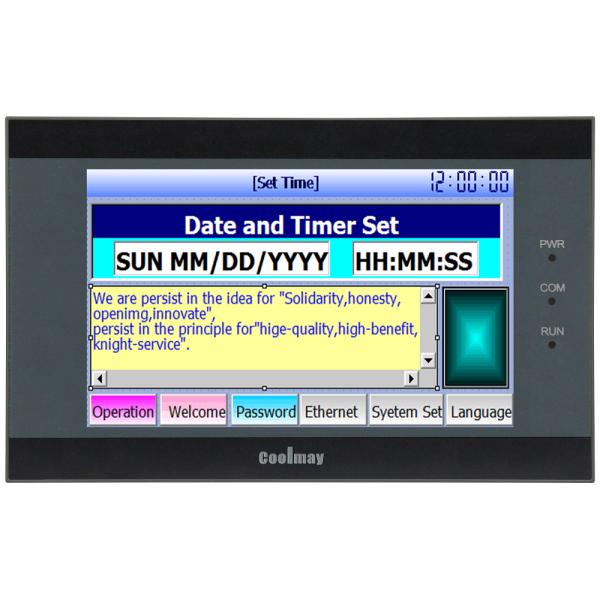

Smart HMI Control Panel 5 Inch 800x480 High Resolution Modbus Human Machine Interface
Coolmay hmi control panel, can Connect programmable logic controller (PLC), frequency converter, DC speed controller, instrument and other industrial control equipment, be used to display, write working parameters or input operation commands through input units (such as touchpad, mouse, etc.) to achieve A digital device for information interaction between humans and machines, consisting of two parts: hardware and software.
| MODEL | TK6050FH | |
| SPECS | Dimension | 151*96*36mm |
| Cutout size | 143*86mm | |
| Display size | 108*65mm | |
| Weight | Appox. 0.33 kg | |
| DISPLAY | Display | 5" TFT |
| Resolution | 800*480 pixels | |
| Brightness | 300cd/m2 | |
| Contrast ratio | 400:01:00 | |
| Backlight | LED | |
| Backlight time | 60,000 hours | |
| Display color | 65536 colors | |
| Touch type | 4-wire resistive panel | |
| STORAGE | ROM | 64MB |
| RAM | NOR Flash 8MB | |
| CPU | 32bit CPU 408MHz | |
| INTERFACE | Download port | Type-C, RS232, RS485 |
| COM port | 1 RS232, 1 RS485 | |
| Optional | 1 WIFI (occupy default RS485 port) | |
| Protocol | Support MODBUS, free port and common PLC communication Protocol | |
| OTHER | Calendar | Yes |
| Input Voltage | 12-24VDC±10%<150mA @ 24VDC | |
| Consumption | 85mA/24V | |
| Protection Class | IP65 (front panel) | |
| Temperature | Ambient environment: 0～50℃ Storage environment: -20～70℃ | |
| Humidity | 20%～90% RH | |
| Certification | CE | |
Software | CoolMay mView HMI programming software | |
Features:
IP65 Panel protection grade, 65K TFT
Brand new high-brightness,high-contrast display LCD, providing colorful operation interface.
Optional WIFI
802.11b/g/n wireless communication standard protocol; convenient upload/download function of configuration software via network cable.
Thin and light embedded
Can be easily installed in various complex industrial application environments.
Conformal coating protection for motherboard
In various harsh industrial environments, it is more effective against shock, moisture,high and low temperature, and chemical corrosion.
Integrated rich industrial interfaces
RS232, RS485, USB2.0, WIFI, Ethernet
Onboard 408MHz high performance 32Bit industrial grade CPU
has fast running speed,high data processing efficiency and strong anti-interference ability.
Data security upgrade
This series of HMl supports password man-agement functions. Users can set passwords for specific registers, buttons,and screens, and add permissions to ensure data security.
Installation Dimensions:
Application Picture:
|
|
