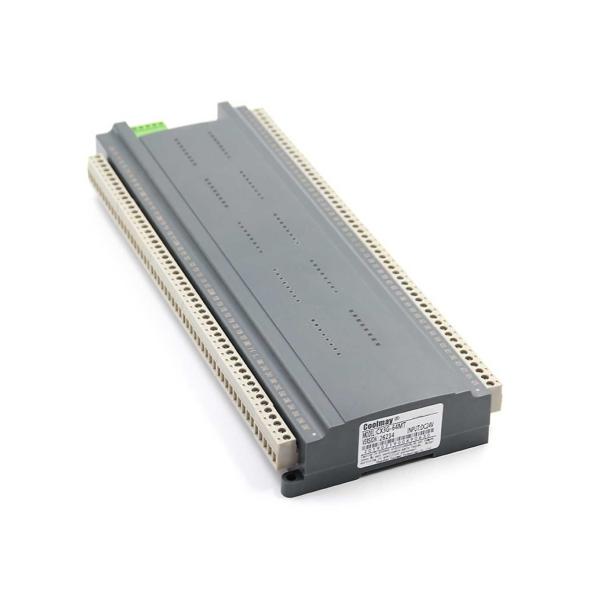

80 Digital IO Compact Rs485 MODBUS Industrial Control PLC
Model: CX3G-80MR/T
Digital Input:40
Digital Output:40 (Relay or transistor output)
default 6 channels 1 phase 60khz high speed counting input
default 8 channels high speed pulse output (4*100khz+4*10khz) if
transistor.
1rs232 +2rs485 com port
* Analog input : up to 4 channels to be made.
Analog output : up to 4 channels to be made.
Compatible to Mitsubishi programming software, like GX Works2, GX developer 8.52/8.86 version.
Standard DC24V NPN .
PNP Style could be customized.
| Model | CX3G-80MR/T |
| Dimension | 290*90*36mm |
| Cutout size | 282*99mm |
| Installation | Fixed hole installation and DIN-Rail (35mm ) |
| Features | Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register |

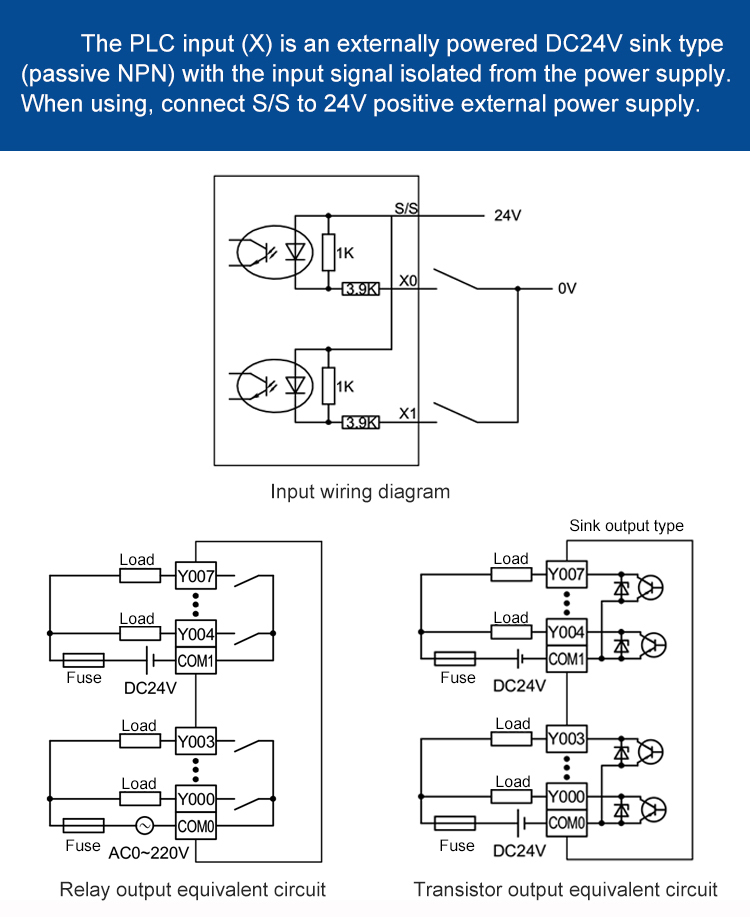

| I/O level | Input: Passive NPN, public terminal isolated Transistor output: NPN | Relay output: Normally open dry contact |
| Digital I/O | 40DI/40DO |
| DO type | Relay(MR) output: max load 5A |
| High speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
| High speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz |
| High-speed counting + high-speed pulse < 480KHz | |
| Analog I/O | 4AI/4AO |
| AI type | 4-20mA (Other type like E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0-20mA/ -5V~5V/ -10V~10V can also be made) |
| AO type | 0~10V/ 0~5V/ 0-20mA/ -5V~5V/ -10V~10V (Note: negative will occupy 2 AO for each channel) |
| Default | 1 Mini type B USB programming port, 1 RS232 programming port (Interface terminal is mouse female port with 8 holes), 2 RS485 COM ports |
| Software | Compatible with WORKS 2 |
Installation:
|
|
