| Brand Name : | Coolmay |
| Model Number : | EX3G-43H |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 15000 Units Per Week |
| Delivery Time : | 3-8 works days |

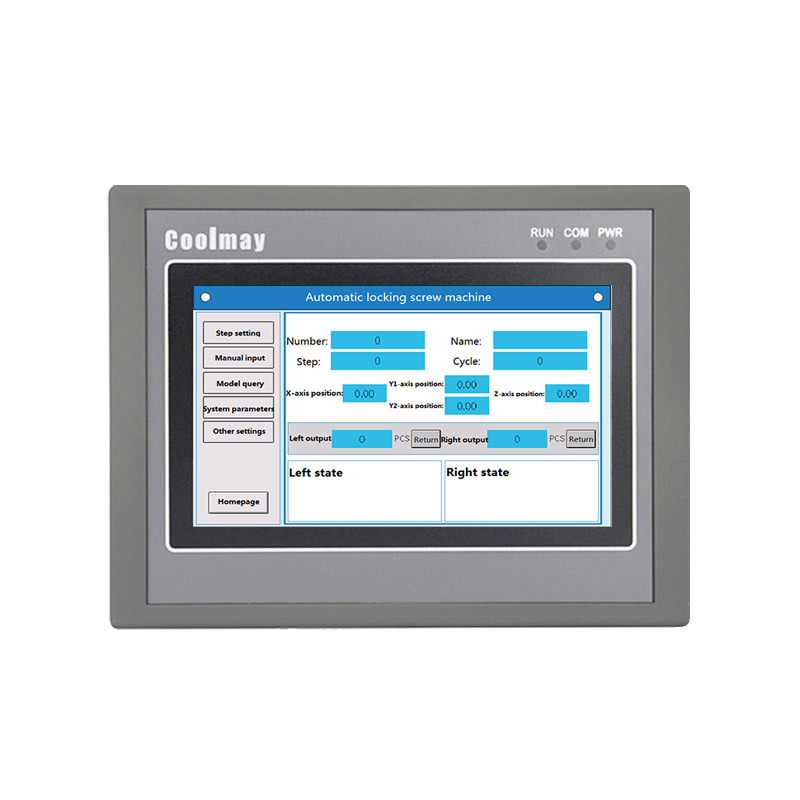

Automation Industry USB 2.0 Port HMI Portrait Display 4.3'' TFT PLC HMI All-in-one
Coolmay HMI/PLC all-in-one machine has innovatively realized the high integration of HMI and PLC switch, analog and temperature in hardware. It can be used in various occasions requiring PLC control without external PLC and other expansion modules. The highly integrated industrial automation control solution uses pluggable terminals, which greatly facilitates the disassembly, installation and maintenance of terminal customers. It can be replaced directly when it fails, achieving "zero travel expenses" and free on-site maintenance.
PRODUCT DESCRIPTION of HMI PLC ALL IN ONE
Feature:
1. Structure
Highly integrated, compact structure, cost saving and space saving.
2. Programming Software
HMI: Adopts CoolMayHMI touch screen programming software.
PLC: Compatible with Mitsubishi Works 2/ GX Developer 8.86.
3. Input
Digital input: 12 channels digital input.
Analog input: 4 AD inputs can be installed.
Optional: E/K/S/T/J thermocouple/PT100/PT1000/NTC10K/NTC50K/NTC100K/ 0~10V/0~5V/0~20mA/4~20mA or mixed type and other special specifications (thermocouple supports negative temperature).
4. High-speed counting input
Single phase 6 channels 60KHz high-speed counting or 2 channels AB (Z) phase 60KHz plus 1 channel AB phase 10KHz.
| Display | Dimension | 150*93*32mm |
| Resolution | 43KH:480*272 pixels 50KH:800*480 pixels | |
| Type | 4.3”/5” TFT | |
| Features | Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register | |
| Memory | RAM | 64MB |
| ROM | 128MB | |
| CPU | ARM9 400MHz | |
| I/O | DI/DO | 12DI/12DO |
Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact | ||
| DO type | Relay(MR) or MOS(MT) (Relay output: max load 5A/ MOS output: max load 2A) | |
| Analog I/O (optional) | Max 4AI/2AO | |
| AI type (optional) | Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed | |
| AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed |
Maintenance and service
RFQ:
Q: Do you provide a cargo warranty?
Yes, we provide warranty on all goods.
Q: Can Coolmay provide technical support?
A: We have been in this field for more than 12 years. If you have
any questions, please contact us and we will provide advice from
our engineers to help you solve the problem.
|
|
