100% Original QM3G-70KFH 16AI/8AO HMI And Programmable Logic Controller All In One For Industrial Machine
DESCRIPTION:
max digital points | QM3G-70KFH |
digital input X | X00~X35 30 points |
digital output Y | Y00~Y35 30 points |
Auxiliary Relay M | [M0~M383] 384point general / [M384~M1535] 1152point holding /
[M1536~M7679] 6144point general |
[M8000~M8511] 512point special | |
Timer T | [T0~T199] 200point 100ms general / [ [T250~T255] 6 points 100ms
holding |
[T246~T249] 4point 1ms grand total holding / [T256~T319] 64 points
1ms general | |
[T200~T245] 46point 10ms General ※The 10ms timer will be affected
by the scan period. If the scan period is 12ms, the timer becomes 12ms and executes
once. | |
Counter C | high-speed counter |
[C235~C245 single phase single counting] [C246~C250 single phase dual counting] [C251~C255 dual phase dual counting] | |
Data Register D | [D0~D127] 128point general/ [D128~D7999] 7872point Holding/
[D8000~D8511] 512point Special |
Data Register V,Z | [V0~V7] [Z0~Z7] 16point indexing |
Extended file register R | [R0~R22999] 23000points support power outage/ [R23000~R23999]
1000points internal use |
pointer JUMP,CALL branch | [P0~P255] 256points / [P0～P1280] 1281 points (26232 version or
above) |
Nested Pointer | [N0~N7] 8points Master control |
| Interruption | [I0XX～I5XX] 6points input interruption / [I6XX～I8XX] 3points timer
interruption / [I10XX～I60XX] 6points counter interruption |
constant(K) | 32bit -2,147,483,648~2,147,483,647 |
| constant(H) | 32bits 0~FFFFFFFFH |

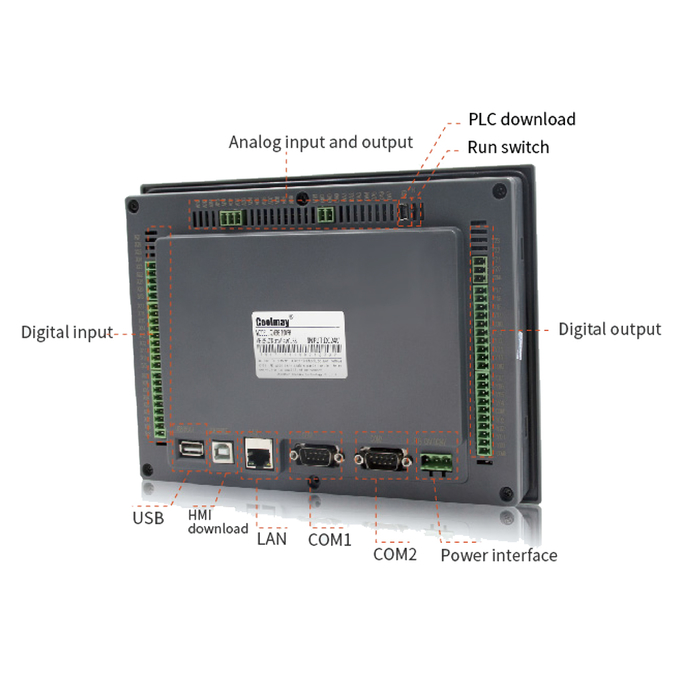

Integrated PLC,HMl,digital I/O(DW/DO), analog I/O(AD/DA), high speed functionI/Otc..
- Compatible with FX3G/FX3U/FX3S PLC,fast operation.
- 38 Digital (20 digital input +18 digital output) , 12AD/8DA.
- 60 Digital (30 digital input +30 digital output) , 5AD/2DA.
- Default 2 PLC programming ports, 1 HMl download port.
- Supports optional one or two Rs485, CAN, WIFl, network port on PLC, and supports optional Rs232,Rs485,network port (under development)on HMI.
- Supports multi-channel high speed count and pulse functions.
- 32K-step program capacity and 32Kpower retentive registers.Supports interruption, linear arc interpolation and PID self-tuning.
Free cables
Blue cable: 1.5M HMI Downloading Cable
White cable: 1.5M PLC Programming Cable
|
|
