100original 5 inch Integrated HMI PLC controller 24MT for industrial machine
Product Description:
Features:
1. Support interrupt,
2. linear arc interpolation,
3. PID auto-tuning.
4. 32K program capacity, 32K retentive register
Super functions:
PLC is compatible with FX3G, FX3U, FX3S. It operates fast.
Highly integration.
1. The digital points are 30 inputs and 30 outputs at most. The digital output can be transistor, relay or mixed output. Analog can reach up to 16 input and 8 output. It has 2 PLC COM port (RS232 and Mini B-type USB port), 1 downloading port and 1 USB port on HMI.
2. The PLC part of models 70KH, 100HA all-in-one can optionally select one 485 port or two 485 ports (one is changed from existed 232 port), CAN, network port (not coexist with the one on HMI), Wifi (will cover the existed 232 port). The HMI part can optionally select one RS232 or one RS485, and network port (not coexist with the one on PLC).
Model | EX3G-50KH |
Dimension | 150*93*32mm |
Cutout size | 143*86mm |
Power Consumption | 5-7W |
| HMI | |
Feature | 60K-color resistive touch screen, supports portrait display |
Type | 5.0"TFT |
Display size | 108*65mm |
Resolution (pixels) | 800*480 |
RAM | NORFlash8MB |
ROM | 64MB |
| CPU | 32bit CPU 408MHz |
Default | Type-C HMI download port (can download PLC program through the USB
penetrating function),RS232port |
| software | CoolmayHMI Programming Software |
| PLC | |
I/O | Max 12DI/12DO |
I/O level | Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay
output: Normally open dry contact |
DO type | Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT) (Relay output: max load 5A/ transistor output: max load 500mA) |
High-speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
High-speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
Default programming port | 1*Type C port, 1 RS232 |
| Optional COM port | 1 RS485 or 2 RS485 COM ports (one is changed from the default RS232 port) |
Analog I/O (optional) | Max 4AI/2AO |
AI type (optional) | Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/
NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed |
AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/ -5~5V/ -10~10V (2AO for 1 minus voltage) |
Software | Compatible with Mitsubishi GX Developer 8.86 and WORKS 2 |

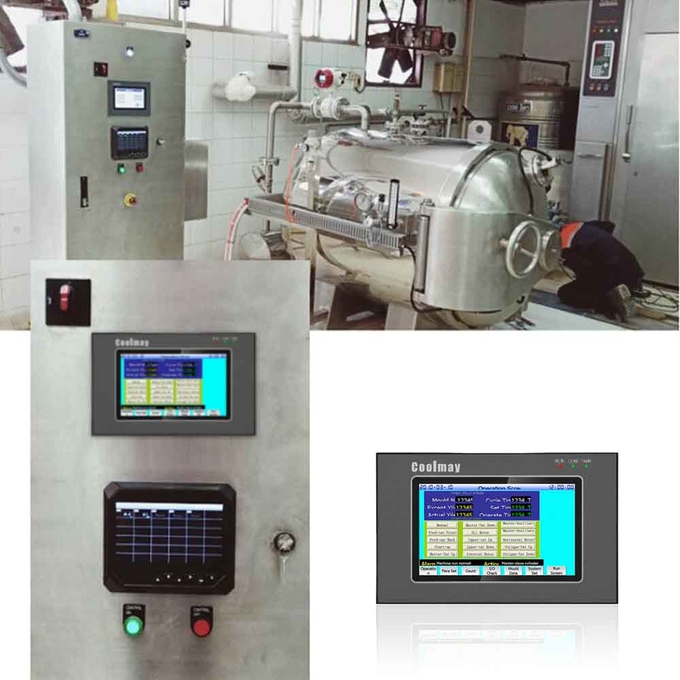

Real Application:
|
|
