| Brand Name : | Coolmay |
| Model Number : | L02-4AD |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 3-8 working days |

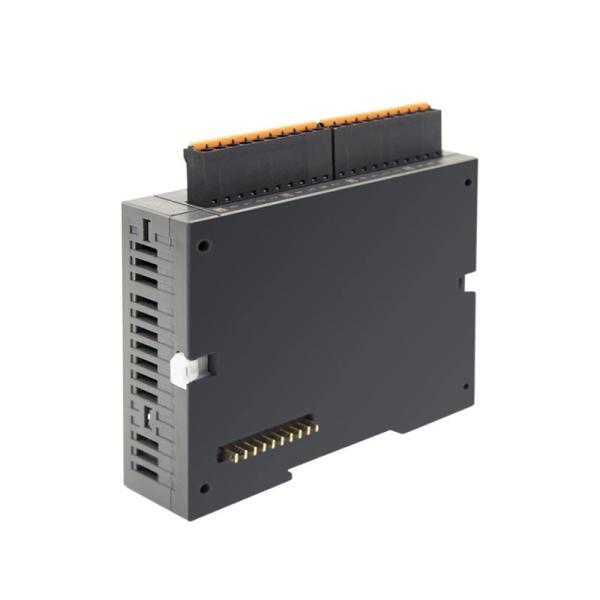

ODM OEM PLC Programmable Logic Controller Module 8DI 8DO 10KHz
Transistor output support PWM plc programmable controller with temperature control and humidity control ODM/OEM
Coolmay PLC programmable controller adopts power separation technology for the first time in hardware innovation. It is ultra-thin, low heat, fast heat dissipation, stable and reliable, PLC is highly integrated with analog and temperature, powerful, easy to use, cost and space saving, and flexible. It has strong performance and can be used in various occasions requiring PLC control without external PLC expansion modules.
Features
1. Structure: Highly integrated, compact structure, cost saving and
space saving.
2. Programming software: Compatible with GX WORKS 2.
3. Digital input: 8-channel digital quantity input (passive NPN,
public terminal isolation).
4. High-speed count input: 6-channel single-phase 60KHz high-speed
counting or 2-channel AB(Z) phase 60KHz+1 channel AB phase 10KHz.
5. Digital output:8-channel transistor output (maximum load 500mA)
or mixed(relay and transister) .
6. High speed pulse: Support 8-channel 10 KHz pulse output.
7. Communication: Support RS485 communication, RS232 port and CAN
2.0A/B (optional Mitsubishi programming port protocol/MODBUS
protocol/RS protocol/BD board protocol).
8. Program encryption: Support PLC special encryption, completely
prohibit reading the program, protect the intellectual rights and
interests of engineers and manufacturers.
9. Signal filtering: Support input signal filtering time setting,
filtering time default 10ms (settable range 6-60ms).
Parameter
| Dimension | 85*90*36mm |
| Cutout size | 77*99mm |
| Installation | Fixed hole installation and DIN-Rail (35mm ) |
| Features | Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register |
| I/O level | Input: Passive NPN, public terminal isolated Transistor output: NPN Relay output: Normally open dry contact |
| Digital I/O | 8DI/8DO |
| DO type and load | Relay(MR) or transistor(MT) or mixed(MRT) MOS tube: 2A/point, 4A/4 point COM; Transistor MT: 0.5A/point, 0.8A/4 point COM, 1.6A/8 point COM; MR: 2A/point, 4A/4 point COM, 5A/8 Click COM. (CX3G-16MRT: Default Y0, Y1 is transistor output, maximum 6 relay outputs) |
| High speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
| High speed pulse | 8 channels 10KHz |
| High-speed counting + high-speed pulse < 480KHz | |
| Analog I/O (optional) | Null |
| AI type (optional) | Null |
| AO type (optional) | Null |
| Default | 1 Mini type B USB programming port, 1 RS232 programming port (Interface terminal is mouse female port with 8 holes), 2 RS485 COM ports |
| Optional | Default 2 RS485 COM ports can be customized as 1 RS485, 1 RS232 COM ports, or 1 RS485 COM port, 1 CAN (2.0A/B), or 1 RS232 COM port, 1 CAN (2.0A/B) |
| Software | Compatible with GX WORKS 2 |
| Analog input Module | L02-4AD | channel analog signal input 16-bit resolution 0~10V, 0~5V, 0~20mA, -20~20mA |
|
|
