| Brand Name : | Coolmay |
| Model Number : | QM3G-43FH-24MT-4AD2DA-V-V-485P |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 100,000 set per month |
| Delivery Time : | 3-8 working days |

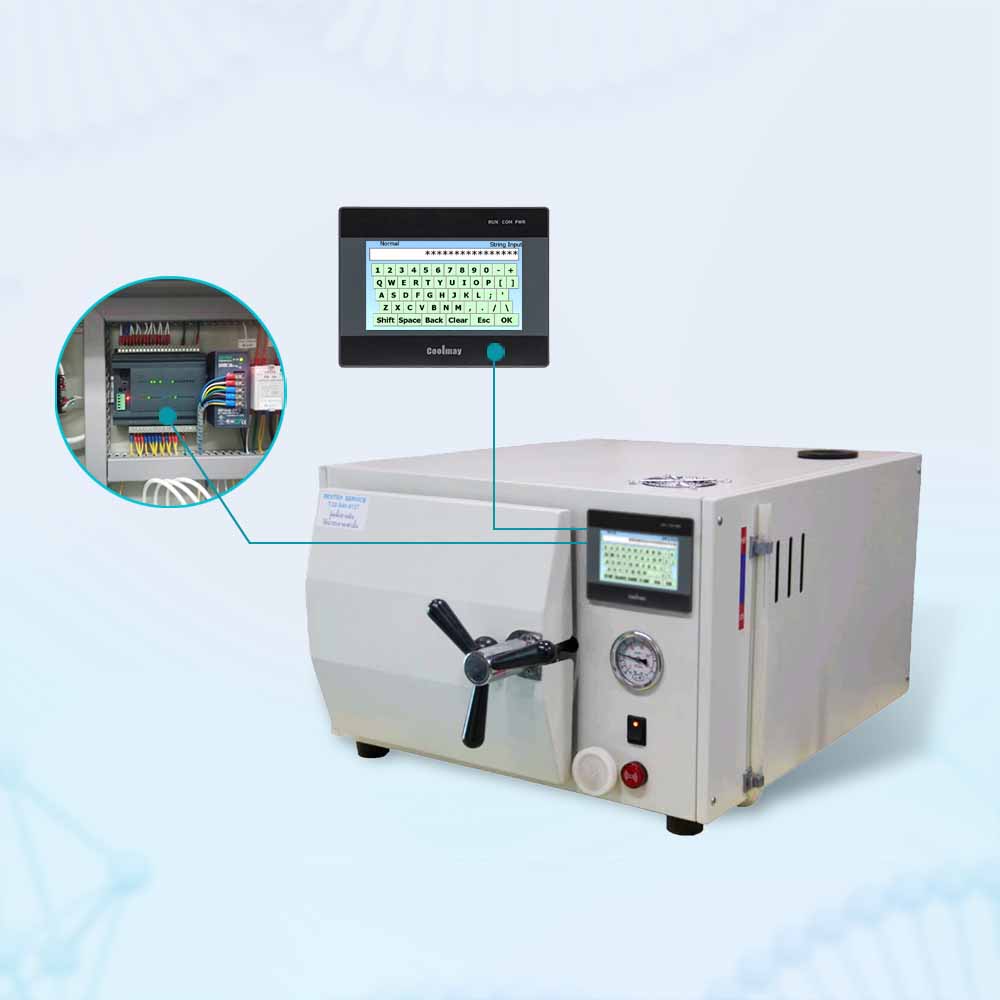

Integrated HMI PLC 2 PLC Programming Ports compatible with GX Developer8.86
QM3G-FH PLC/HMI All-in-one Main Advantage:
◆Upper computer programming software compatible with Works 2/GX Developer8.86 (supports Ladder diagram and SFC language, does not support structured programming/labels).
◆Powerful, compatible with FX3G/FX3U/FX3S PLC, high processing speed.
◆Military level 32 bit CPU adopted, which is faster and more adapted to industrial environment of high electromagnetic interference.
◆Special encryption, prevent illegal reading thoroughly. 8-bit encryption, 12345678 as password can thoroughly prevent reading of ladder logic program.
◆Clock supported, rechargeable battery adopted.
◆Default with 1 HMI download port, 2 PLC programming ports (RS232/MiniB USB port or Type-C), and one USB port.
◆Support Mitsubishi programming protocol/MODBUS protocol/RS protocol/BD board protocol, easily realize PLC interconnection and communication with external devices.
◆High-speed counting, conventionally single-phase 6 channels 60KHz or AB (Z) phase 2 channels 60KHz + AB phase 1 channel 10KHz. High-speed pulse, conventionally 8 channels: Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting+ High-speed pulse cannot exceed 480KHz; acceleration and deceleration are independent.
Specification
Display | Dimension | 134*102*34mm |
Cutout size | 120*94mm | |
Type | 4.3"TFT | |
Feature | 60K-color resistive touch screen, supports portrait display | |
Memory | RAM | 64MB |
ROM | NOR Flash 8MB | |
CPU | 32bit CPU 408MHz | |
I/O | DI/DO | Max 12DI/12DO |
DI/DO level | Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact | |
DO type and load | Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM. | |
Analog I/O (optional) | Max 4AI/2AO | |
AI type (optional) | Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed | |
AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed | |
High-speed function | High-speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
High-speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz | |
Connection | HMI | Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port |
/ | ||
PLC | 1 TYPE-C, 1 RS232 (program port) | |
1 RS485 or 2 RS485 COM ports (one of which is changed from the default RS232 port); 1 WIFI (occupy default RS232 port) | ||
Software | HMI | Coolmay mView HMI Programming Software |
PLC | Compatible with Mitsubishi GX Developer 8.86 and WORKS 2 |
How to query historical data according to time conditions?
Solution: Need to use SQL function in HMI. The usage of SQL function, insert SQL control, the first three are: the button LB that triggers the search function, start time, end time, (the time is selected inside, not others). The latter LW10000 needs to use the LW8244 and LW8245 functions (BMOV) to transfer the registers after LW10000 to LW0-9000. The total number of displayed addresses needs to be set on the BMOV, but the number of displayed registers needs to be selected in the color coverage at the bottom of the SQL.
|
|
